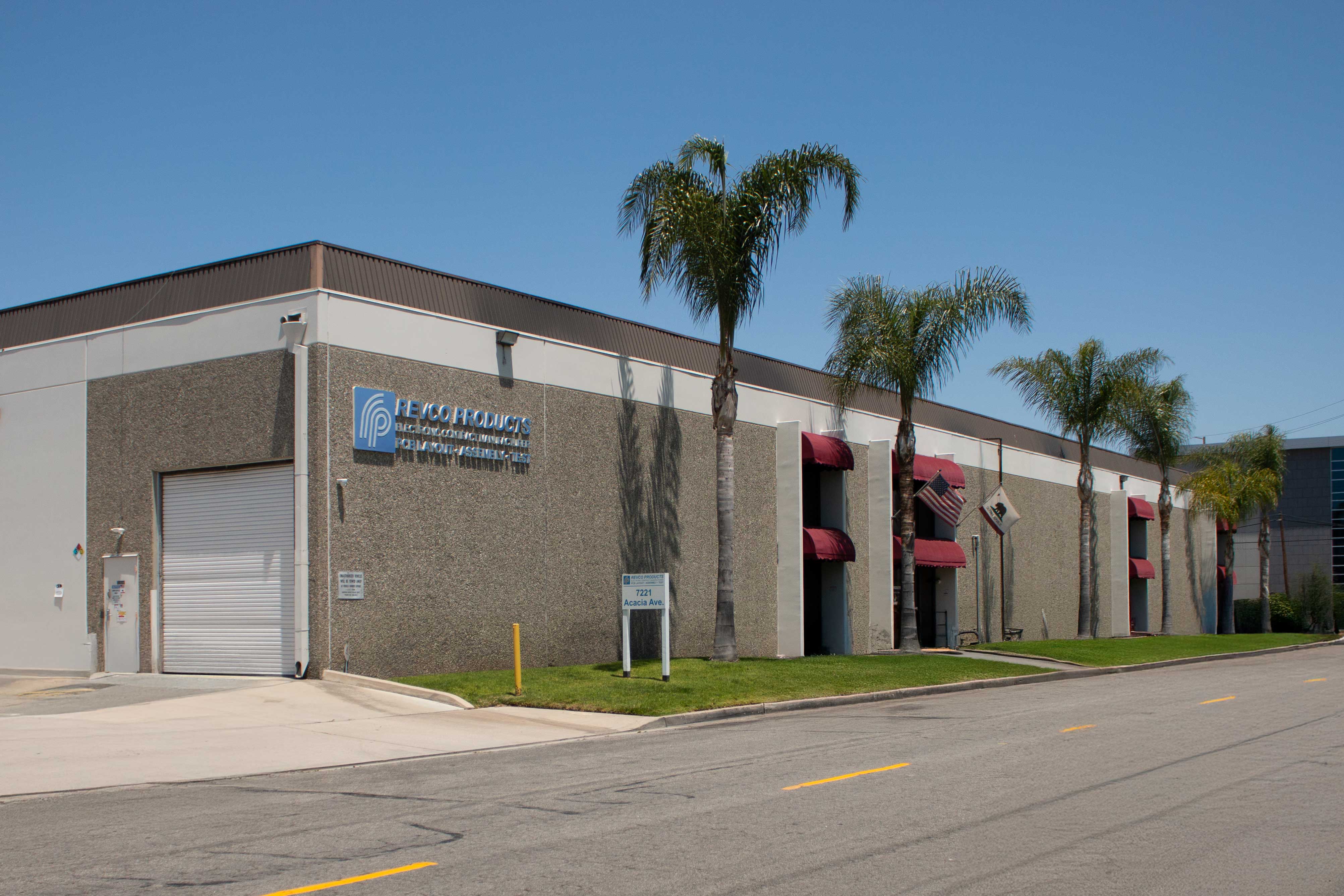

Located in the heart of Orange County, California, our facility is easily accessible via the 22 and 405 freeways.

Our facility is:

  • Climate controlled
  • ESD protected
  • Designed for manufacturing efficiency

Our Processes & Technicians are:

  • ISO 9001 certified
  • IPC J-STD-001 and IPC A-610 certified
  • Capable of producing lead-free PCB assemblies that meet the latest EU RoHS requirements
  • Capable of producing tin lead assemblies

Equipment


equipment

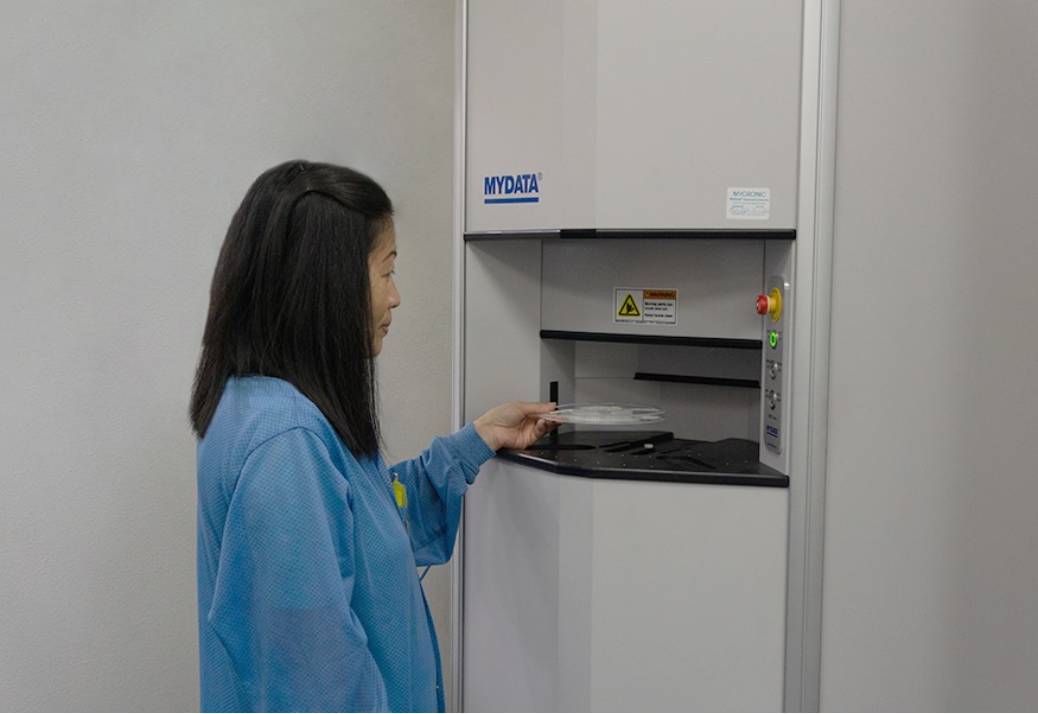

MYCRONIC Inventory Management System

With automatic storage and retrieval our Inventory Management System simplifies the management of stock components and ensures error-free component load. Through a climate-controlled storage tower, a robotic arm delivers component reels to operators, virtually eliminating the risk of incorrect material delivery.

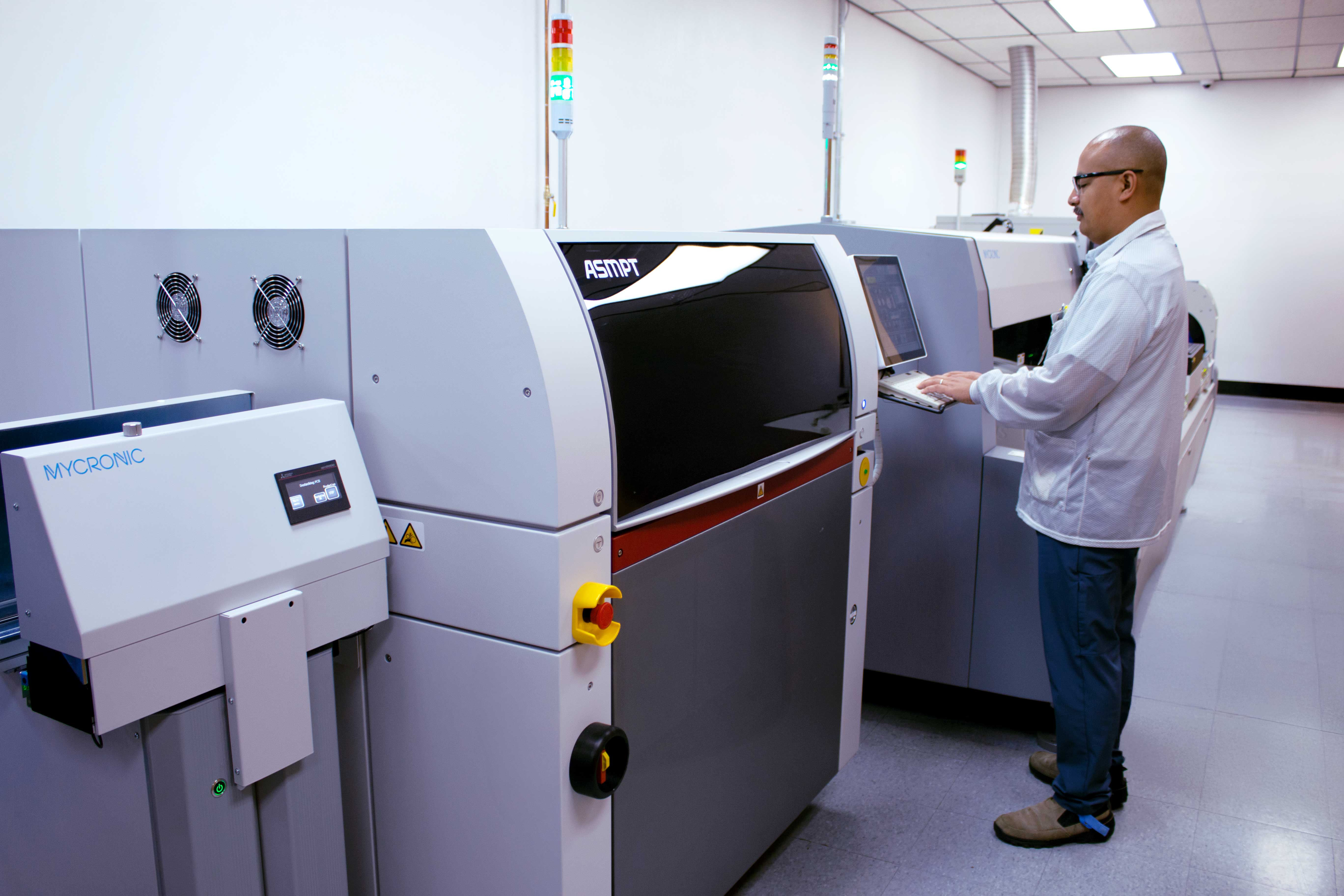

ASM E by DEK Screen Printing Systems

High-precision printing with high-quality solder paste is essential for quality SMT board assembly. Our screen printers handle high-throughput production rates as well as small-lot prototyping volumes. With paste on pad verification and state of the art clamping systems; our screen printers produce stable and reliable results.

equipment
equipment

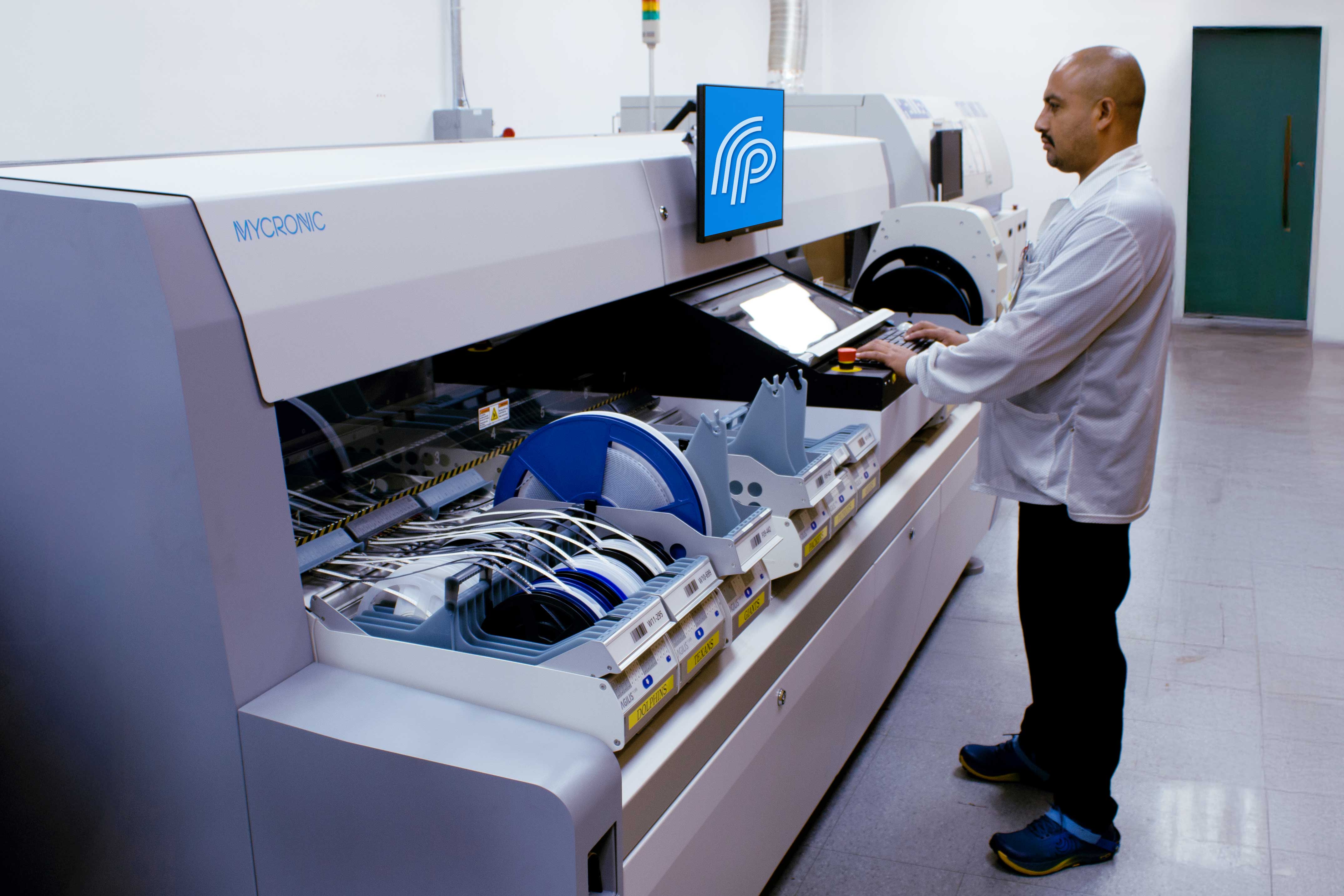

MYCRONIC MY300 SMT Pick-and-Place Machines

Capable of handling a wide variety of boards and components for quick, intelligent and precise PCB assembly. From 0.15 mm fine-pitch CSPs, FCs or BGAs to 150 mm long connectors, our pick-and-place equipment can populate high density and uniquely shaped boards.

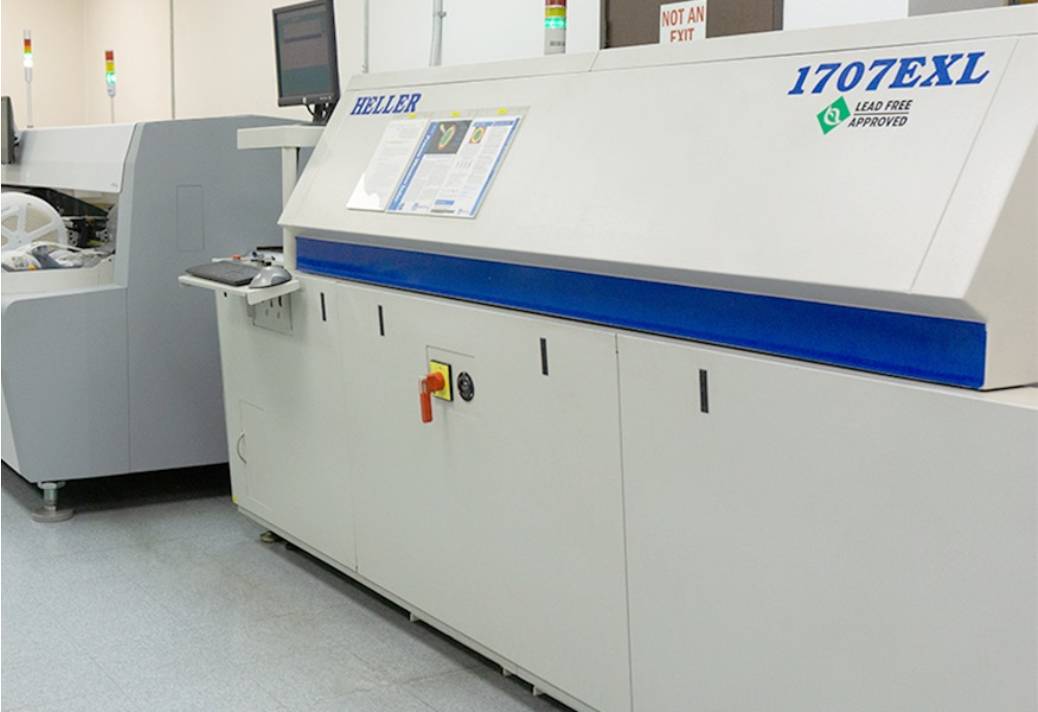

Heller 1707EXL Solder Reflow Ovens

Our reflow ovens have lead free processing capability with 7 top and 7 bottom instant response heating zones. Our ovens can support medium to high volume, high velocity SMT reflow soldering with tight process controls.

equipment

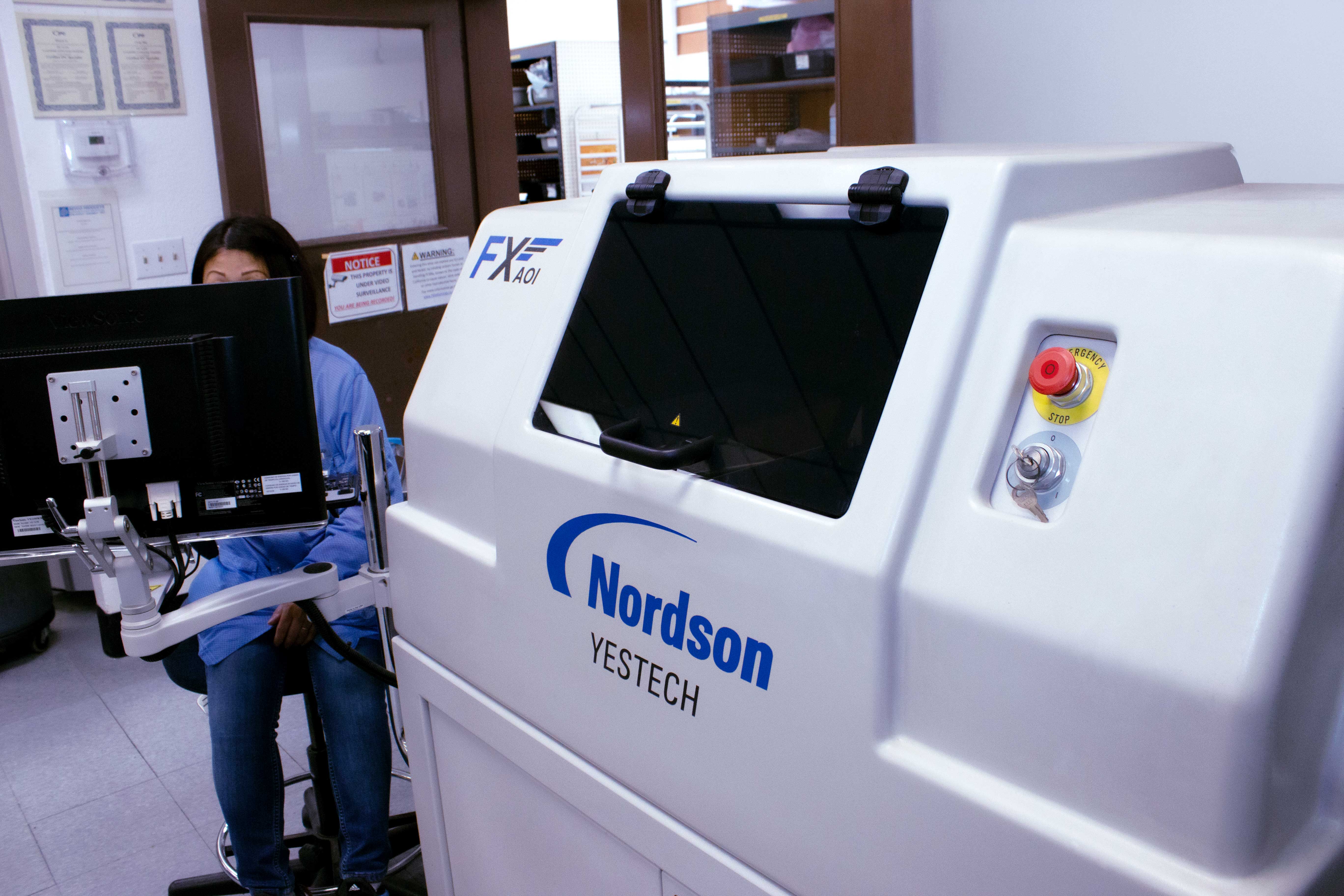

YES Tech AOI Systems

We use Automated Optical Inspection (AOI) technology to inspect solder joint quality and verify correct component placement. AOI uses machine vision to achieve consistent and repeatable inspections that are far superior to the visual inspection capability of the human eye.

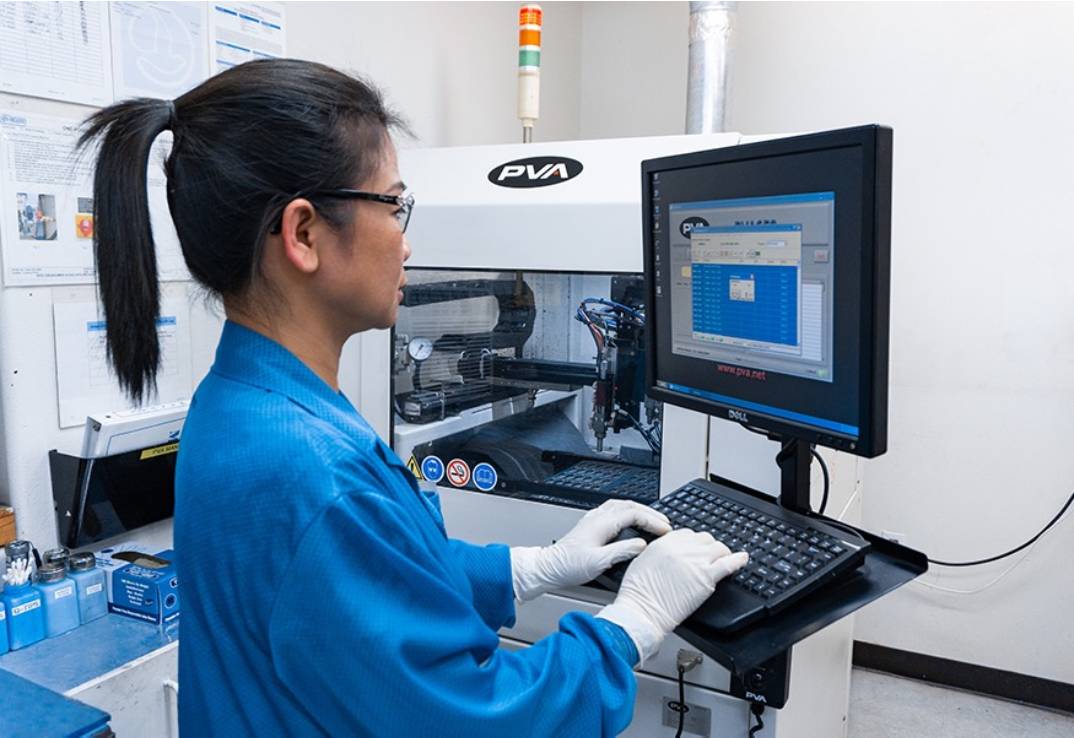

PVA Conformal Coating Systems

A protective film or liquid layer can be applied to a PCB in selected areas or over the entire assembly. This process protects the board and it’s components from moisture, thermal and mechanical shock, as well as environmental contamination. Conformal coating improves product reliability and lengthens product life to safeguard your brand image and gain a competitive edge.

equipment

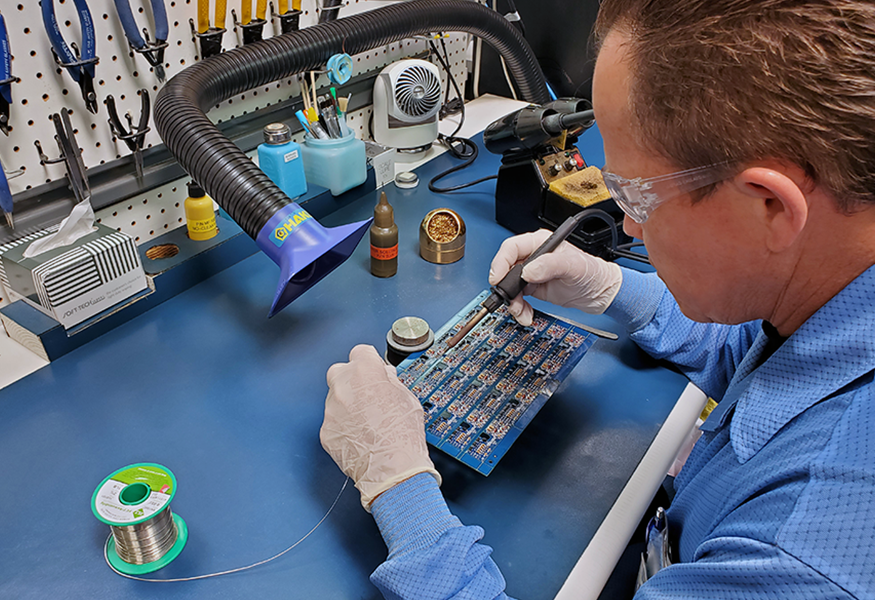

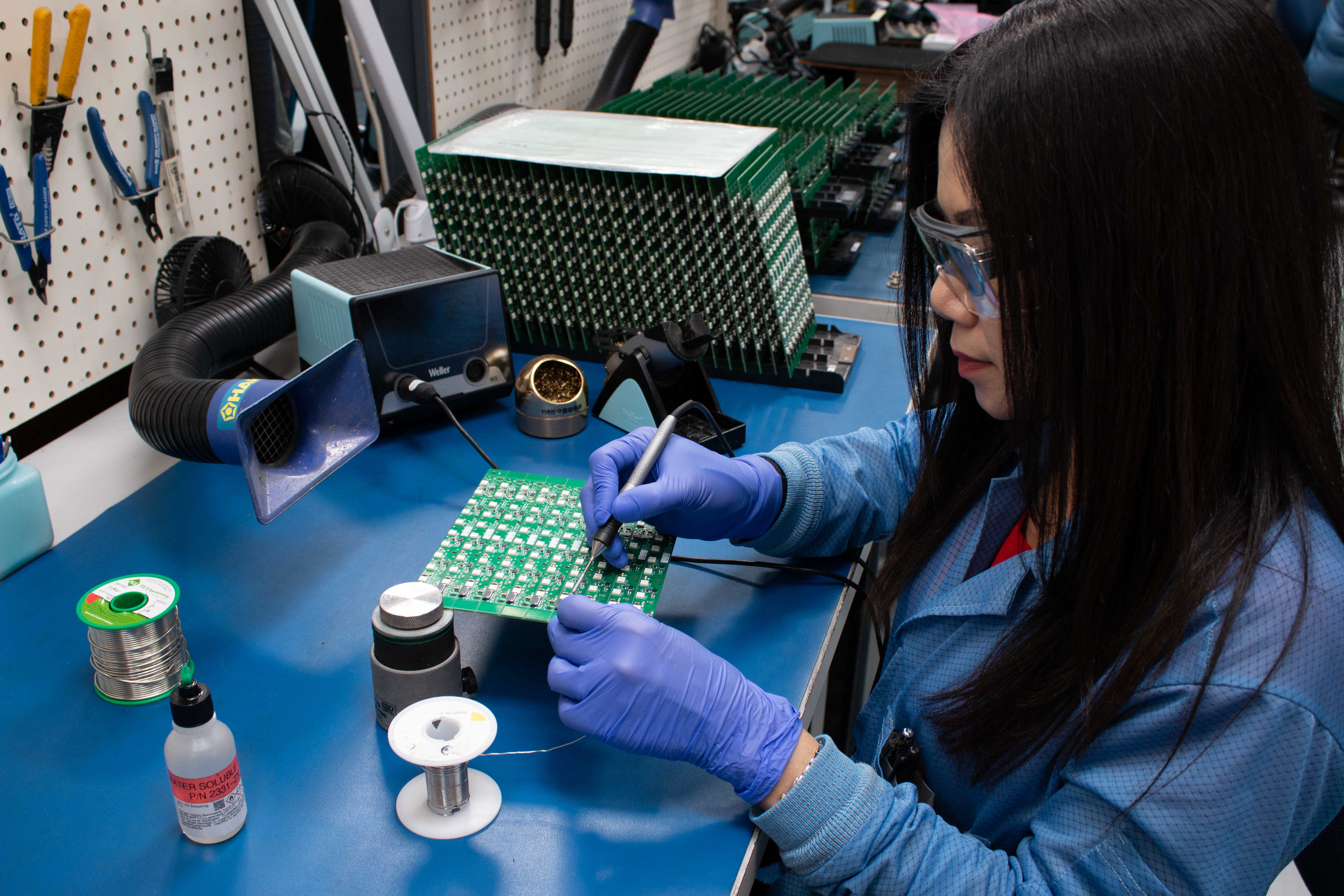

Benchtop Soldering Stations

Our team of highly skilled soldering technicians utilize high performance soldering tools. These tools enable us to provide PCB assemblies with superior quality and accuracy. Benchtop soldering is ideal for mixed component PCBs and large complex through-hole components.

Functional and Burn-In Test Systems

We perform functional tests to ensure your specifications are met. We also stress test your PCB assembly to detect early failure mode. These tests provide valuable information useful in product validation.
